Soft Starters
We manufacture and supply. Soft Starters. Please feel free to contact us. Click the button for a quick reply.
Key Information
● Main circuit working voltage: AC220V/690V (+10%-25%);
● Main circuit working current: 13A-1200A;
● Main circuit frequency: 50Hz/60Hz (±2%);
● Control loop power supply: AC220V + 15% (0.5A);
● Soft start rise time: 1-120S;
● Soft parking time: 0-100S;
● Impact time: 0.1-0.3S;
● Shock voltage: 50%-80%:
● Current limiting multiple: 1.5-5.0le:
● Initial voltage: 30% – 70% Ue;
● Cooling method: natural cooling;
● Communication method: RS485 serial communication
Product Features
● The customized number can be directly selected through a simple programming application load type
● Three groups of starting parameters are optional, which is convenient for one motor soft starter to start motor loads with different powers.
● The start detection motor feedback voltage realizes closed-loop control to ensure the successful start of the motor under various working conditions and different loads.
● Three starting modes: voltage ramp starting mode can obtain the maximum output torque; The best starting current limitationof constant current soft starting mode, Wearing the soft start mode again can start the equipment with heavy load.
● Programmable delayed start mode, programmable interlock control.
● There is no phase sequence requirement for the input power supply.
● The starting time and stopping time can be digitally modified.
● It has multiple protection functions: overcurrent, three-phase current imbalance, overheating, phase loss, motor overload, etc
● The dynamic fault memory function is convenient for finding the cause of the fault.
● Field bus full dynamic control monitoring starter, easy to network.

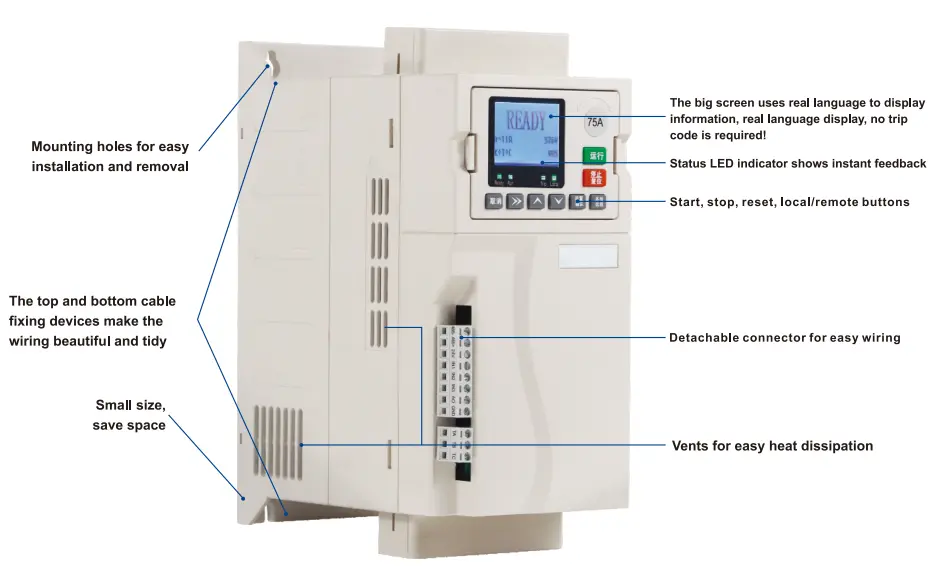

Product analysis

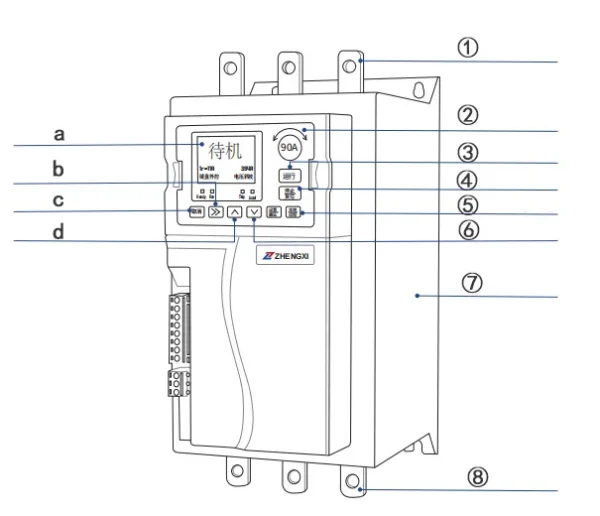

a. LCD Display
b. Shift Keys
c. Program/Confirm key
d. Upward switching key
①Chrome Plated Copper Terminals
②Removable panel
③Operation Keys
④Stop/Reset key
⑤Local/Remote key
⑥Downward switching key
⑦Flame retardant housing
⑧Convenient terminal blocks
①Chrome Plated Copper Terminals
②Removable panel
③LCD display

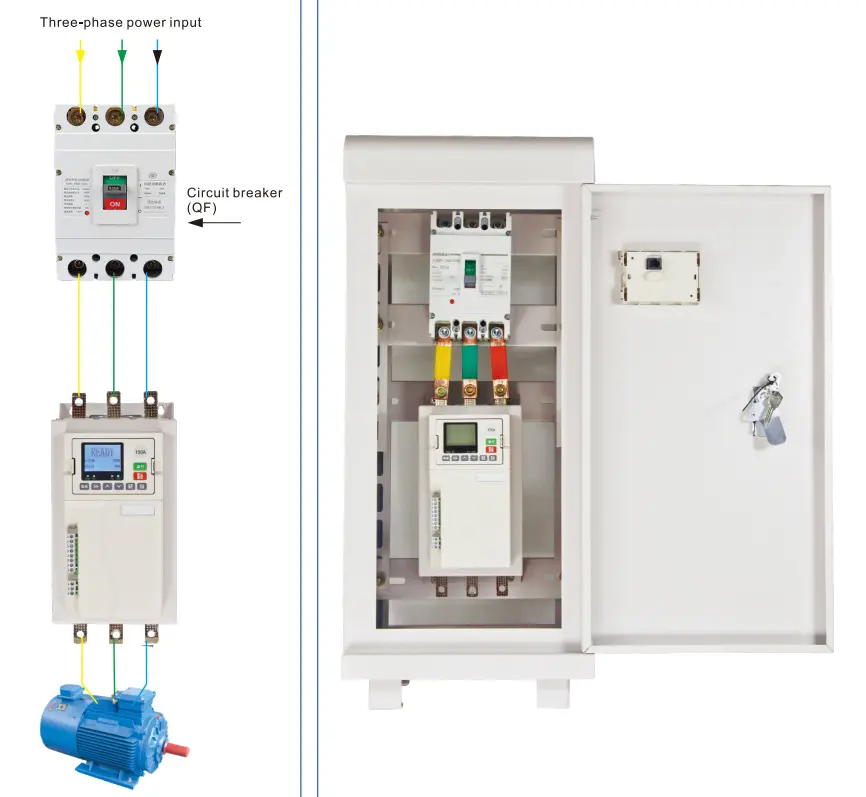

Soft starter function introduction

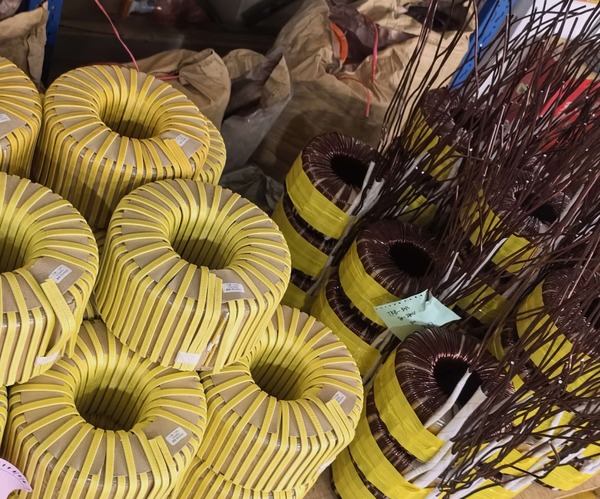

Our Soft Starters Workshop
Our 13,000 ㎡ voltage stabilizer workshop runs 25 production lines, supported by a mold center, product testing lab, and dedicated workshops for winding, assembly, sheet metal work, and aging tests. With 200 team members, including 32 technical engineers, we produce over 1,000 voltage stabilizers daily.
Quality Control
- Every voltage stabilizer undergoes a 100% routine inspection before shipment:
Visual & mechanical check → Safety tests (insulation, dielectric strength, earth continuity) → Regulation performance test at no-load / half-load / full-load → Protection function verification (OV/UV/overload/short-circuit/over-temperature) → Full-load aging test → Noise & display check → Final inspection, record filing & packaging. - Max voltage regulation accuracy: ±1%, THD ≤3%, full-load efficiency ≥95%.
- Our products meet IEC standards with CE & RoHS certifications.
